Connecting a new GPS to an older boat can sometimes feel like a mini electrical investigation. Between the wires of an NMEA 0183 network, the NMEA 2000 backbone, manufacturer-specific protocols, and the arrival of Signal K, the issue goes beyond simply choosing a connector. You need to understand how data flows, how devices are connected, and when a gateway becomes necessary.
NMEA 0183: A Simple but Quickly Overwhelming Connection
For a boater who still uses older instruments, NMEA 0183 remains an important protocol to be familiar with. In use since the 1980s, it transmits information in the form of ASCII sentences. GPS position, heading, and other navigation data are thus transmitted as structured text.
The standard baud rate is 4,800 baud and can go up to 38,400 baud. This architecture is suitable for small amounts of data. However, it reaches its limits when the number of devices increases or when the data becomes larger.

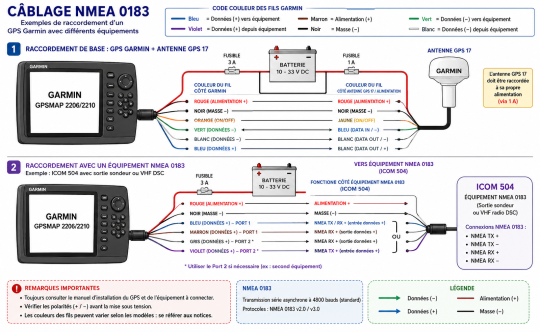

Wiring is another point to keep in mind. NMEA 0183 relies primarily on point-to-point connections. One device transmits, another receives. To distribute or consolidate data among multiple instruments, you must organize the connections and, depending on the installation, add a multiplexer.
This is both its strength and its weakness. On a small-scale system, the operation remains fairly straightforward, and the transmitted messages can be examined directly to troubleshoot a malfunction. On a boat equipped with a GPS, an AIS, a VHF with DSC, an autopilot, and multiple displays, however, the data stream can quickly start to look like a plate of spaghetti.
NMEA 2000 changes both the wiring and the flow of data
NMEA 2000 is not just a faster version of NMEA 0183. Its architecture is different. The protocol is based on a CAN bus and operates at 250 kbit/s. Information is no longer sent as ASCII strings, but as binary messages identified by PGNs (Parameter Group Numbers).

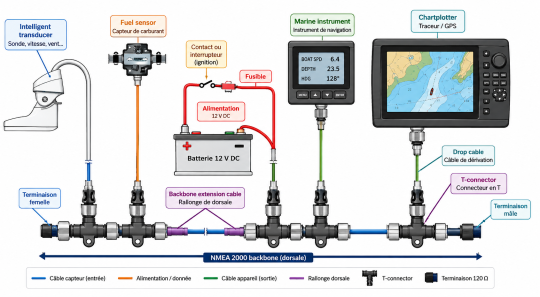

The installation is centered around a backbone. Devices connect to this bus via their own branches. 120 ? terminators terminate the network.
This setup makes it easier to add multiple devices. Sensors, displays, and other equipment can share the same infrastructure instead of requiring multiple direct connections between devices.
Power is also supplied via the network, within a specified range of 9 to 16 V DC. This makes the electrical diagram particularly important. A backbone, its terminations, and its branches are not wired like a series of NMEA 0183 connections.
For a new installation or one with many devices, this architecture simplifies interconnections. However, a retrofit requires more attention. The initial setup of the backbone incurs additional costs, and the diagnostic function no longer provides the immediate display of ASCII strings available with NMEA 0183.
Switching from NMEA 0183 to NMEA 2000 requires converting the data
The coexistence of the two standards is probably the most advantageous situation for the owner of a used boat. Replacing all the electronics just because a new display uses a different protocol makes little sense when the old sensors are still working properly.

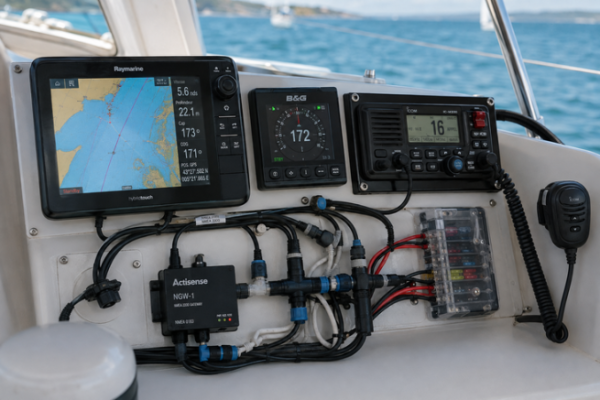

But simply connecting two devices physically is not enough. NMEA 0183 and NMEA 2000 do not use the same architecture or the same message format. A gateway therefore acts as an interpreter between the networks.
This approach is also found in proprietary systems. NKE, for example, uses its Topline network to connect sensors, displays, and the autopilot. It is a half-duplex serial connection organized as a bus. A master display manages the other components of the network.
Topline data streams are binary and carry information such as wind, speed, depth, and heading. To transmit this data to other devices, NKE offers an N2K Box that converts between Topline, NMEA 0183, and NMEA 2000.
The question of modernization therefore becomes less about ?which device to replace?? and more about ?what data should be retained and how should it be transmitted?? Identifying the protocols already on board before purchasing a display, a GPS, or an autopilot prevents the discovery?after installation?that an additional interface is missing from the system.
SeaTalk, Topline, and CAN Bus Complicate Electronic Retrofits
NMEA standards aren't the only ones being used behind the walls. Several manufacturers have developed their own networks.
Raymarine uses SeaTalk on its older equipment and SeaTalkng on newer models. SeaTalkng is based on NMEA 2000, while retaining features specific to the manufacturer.
Furuno also uses a CAN Bus-based network for certain radars and fishfinders, with specific messages. A dedicated interface is required when this information needs to be converted to an NMEA network.
These proprietary systems aren't necessarily a problem when the entire installation is part of the same technical environment. The difficulty arises mainly during a refit. A boat often replaces its electronics piece by piece: a GPS this year, an AIS later, and then an autopilot when the old one gives out.
Before installing a device, you should therefore check what?s behind its front panel. An old display unit may be a simple receiver, but it may also play an important role in the network?s architecture. On Topline, for example, one of the display units acts as the master. Removing equipment without understanding this architecture can therefore have consequences elsewhere in the system.
Signal K makes the boat's data available to applications and the computer network
Signal K takes a different approach to marine data exchange. This open standard uses JSON, HTTP, WebSocket, and MQTT, among other technologies. It thus bridges the gap between marine instrumentation and the IT architectures used by web applications, mobile devices, and connected services.
The principle involves, in particular, retrieving information from onboard equipment and making it usable in this environment. Gateways enable the reception of data from NMEA 0183 or NMEA 2000.
A system can then retain its sensors and marine instruments while adding a computing layer. AIS and GPS, for example, can feed data to a Signal K gateway, while instruments connected to NMEA 2000 remain connected to their network. The Signal K server then exchanges information with devices connected via Wi-Fi or with other network services.
This flexibility comes with a new challenge. Unlike a simple NMEA 0183 exchange, Signal K requires an IT infrastructure, specifically Wi-Fi or Ethernet, depending on the setup. As a result, boaters no longer just have to manage data cables and a power supply; they must also take the onboard IT network into account.
Before rebuilding the network, start by mapping the existing infrastructure
NMEA 0183, NMEA 2000, Signal K, and proprietary protocols are based on different architectures. Therefore, there is no single wiring diagram that works for all boats.
NMEA 0183 remains relevant when it is necessary to keep older equipment or perform a few simple exchanges. NMEA 2000 makes it easier to network a larger number of sensors and instruments via a common backbone. Signal K adds a gateway to applications, Wi-Fi, and IT services. As for proprietary networks, their compatibility must be verified before making any changes.
The first step in an electronic refit is therefore to draw up a system diagram: devices present, the protocol used by each one, power supply, NMEA 0183 transmitters and receivers, components of the NMEA 2000 backbone, and any gateways.
This report may seem less exciting than unboxing a new multifunction display. But on board, knowing where the data is going before cutting the wires is still a pretty good way to stay on course.
