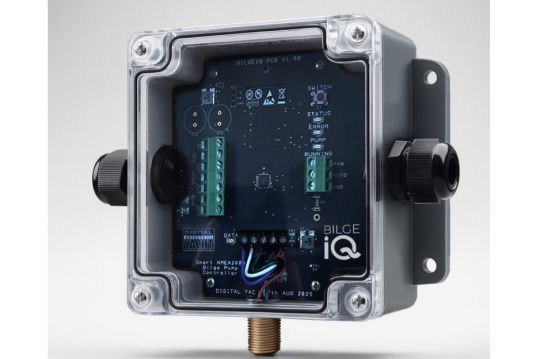

Controlling an electric bilge pump usually relies on a manual or automatic switch and the confidence that everything is working as intended. For many yachtsmen, this is a blind spot when it comes to safety on board. Digital Yacht, a well-known British manufacturer of NMEA interfaces and data gateways, offers with the Bilge iQ a solution that completely digitizes this essential function.
Integrating a bilge pump into a NMEA 2000 network

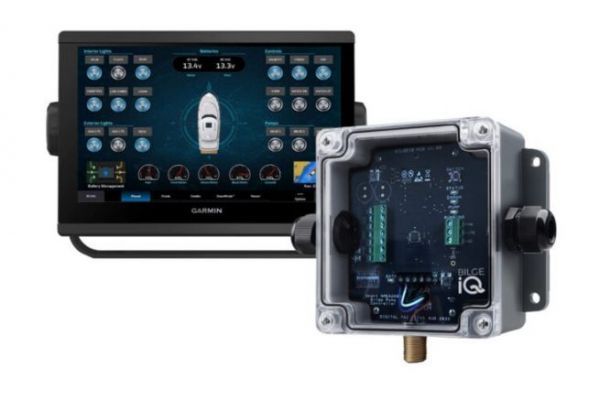

The Bilge iQ's main advantage lies in its ability to connect a bilge pump to an existing NMEA 2000 network. This enables operating data (start, stop, consumption, anomalies) to be displayed on on-board multifunction displays. Compatibility with the NMEA 2000 standard guarantees rapid integration without cumbersome reconfiguration.
The Bilge iQ automatically recognizes standard ON-OFF-AUTO and float switches. The pump can be controlled manually, while retaining automatic monitoring logic.
Data access from the ground or cockpit

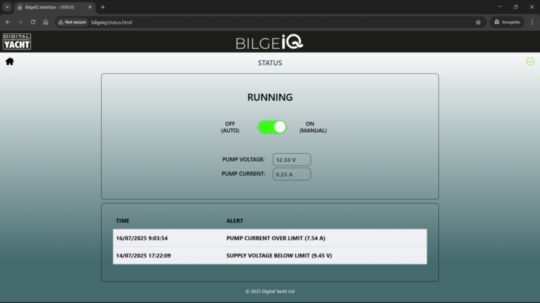

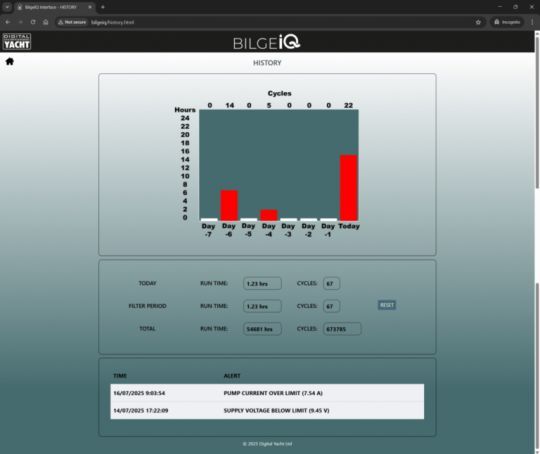

The on-board Wi-Fi interface makes it possible to consult operating cycle histories from a tablet or smartphone. This makes it easier to analyze pump behavior: too-frequent tripping, abnormal durations, excessive consumption.
The Bilge iQ is also compatible with Victron Energy's Cerbo GX controllers, and integrates with the VRM ecosystem for remote consultation. So you can check that your boat is staying dry, even when you're hundreds of miles away.
Know the actual state of the pump, not just its power supply
Most conventional systems indicate whether the pump is powered, but not whether it is actually running. The Bilge iQ measures actual consumption in amperes, enabling the detection of a seized or blocked pump, or one that is running continuously.
It also helps to anticipate maintenance or replacement, by identifying behavioral drifts.
Optimizing bilge filter replacement
The pump's total operating time can be used as a basis for replacing bilge filters, especially those that prevent oil and pollutant discharge. A regular maintenance cycle can thus be set up predictively, without waiting for a clog or leak.
This simple function has a direct impact on the preservation of the marine environment.
Quick installation without system redesign
The Bilge iQ is designed to be installed without modifying the existing installation. It connects in just a few minutes between the pump and its control panel, then to the NMEA 2000 network. No complex parameterization is required.
This equipment is designed for both new units and refits. Its ease of integration means that it can be installed without difficulty by construction sites and private individuals alike.
