A leaking diesel tank on a Sun Rise 34 that will force the rebuilding of the facilities

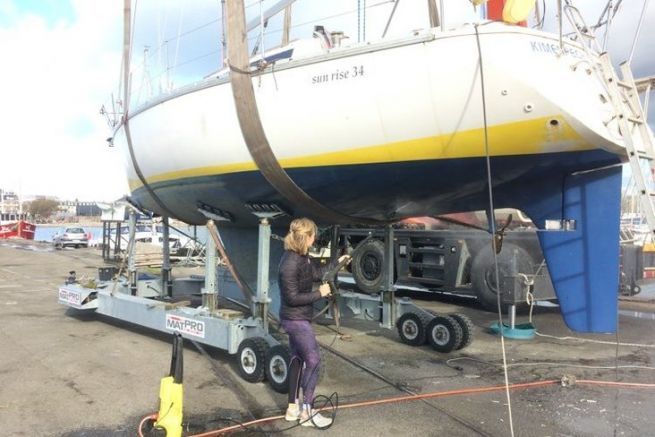

The Sun Rise 34 at the time of purchase

The Sun Rise 34 is a good sailboat built by Jeanneau. The one that Pierre and Lucie found used dates back to 1985. But before being able to set sail with her with the mission of training children in preventive actions, Sauve Qui Peut will require a very large renovation project.

Pierre and Lucie are nurses in the ICU. They would like to travel the world to meet children and teach them preventive and life-saving gestures. To do this they created the association Sauve Qui Peut and set out in search of a sailboat to accompany them on their journey. It is in Hyères in 2018 that they find a Sun Rise 34.

A Sun Rise 34 to rebuild

Le Sun Rise 34 le jour de l'achat en 2018

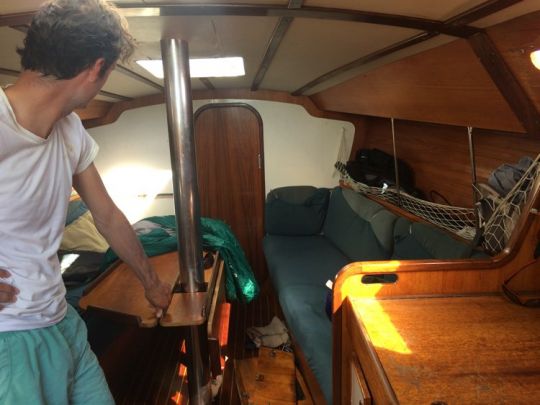

The Sun Rise 34 on the day of purchase in 2018

This one comes back from a tour of the Atlantic, already equipped with a solar panel on a rear gantry and a completely rebuilt engine. This great cruising equipment makes the young couple want to throw themselves into the water. Because for the rest, the boat gives off an appalling smell of diesel inside. The owner indicates that there is probably a leak in the tank..

Diesel in the back!

Sous les plancher, du gasoil...

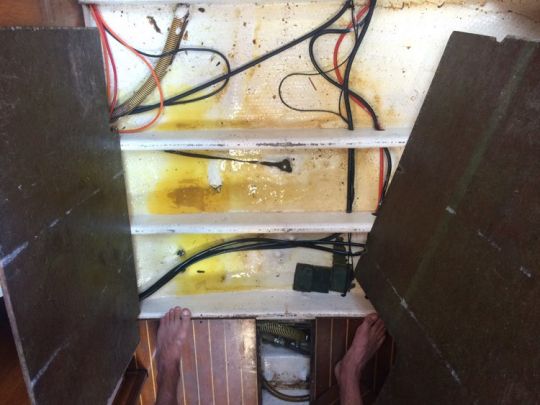

Under the floorboards, diesel fuel...

On the Sun Rise 34, the tank is made of stainless steel and is installed under the chart table. It has a small capacity (45 litres). Obviously it leaks, not all the time, but enough for Pierre to discover 30 litres in the greasy bilges. This leak, which has obviously been going on for a long time, has damaged the entire bottom of the bulkheads, marking all the varnishes. To hold it in place, the tank is strategically positioned against the hull. So we're going to have to debone everything to rebuild it.

The first summer is devoted to the delivery of the boat by sea to its new home port: Saint-Malo. You have to plug your nose as the smell of diesel is so strong inside. Once the boat is dry, Pierre and Lucie can start the renovation.

A diesel leak that rots everything

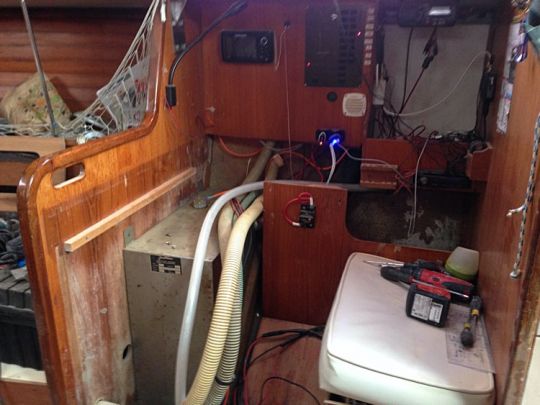

Le réservoir de gasoil installé sous la table à cartes (ici déjà démontée)
The diesel tank installed under the chart table (here already dismantled)

The damage caused by diesel fuel is enormous. They're going to have to dismantle the whole chart table to get the tank out. He discovers a weld that's ruptured on the stern section. The leak is insidious. Even though it's down below, with 20 litres of fuel, it's not leaking. With 30 liters, we see the liquid leaking and with 40 liters it leaks in a big spurt!

Une fois découpée, on voit que la varangue est imbibée de gasoil

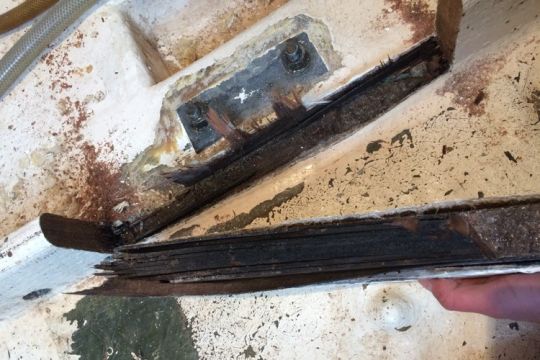

Once cut, we can see that the varangue is soaked in diesel oil

But the worst is the fuel work on the woodwork. Pierre has to change them all. Except the partitions, structural. To mask the grease build-up, he will try all the techniques: acetones, sanding, special paints... nothing really helps.

La nouvelle varangue en place, collé/straté sur le fond de coque
The new varangue in place, glued/stratified on the hull bottom

This diesel really attacks wood. Pierre realized this when he discovered a varangue that was totally soaked and disintegrated. Holes made for the passage of the cable got the better of the wood. Pierre completely removed the varangue to rebuild one before strapping it back to the hull.

Reconstruction of facilities

La cuisine d'origine...
The original kitchen...

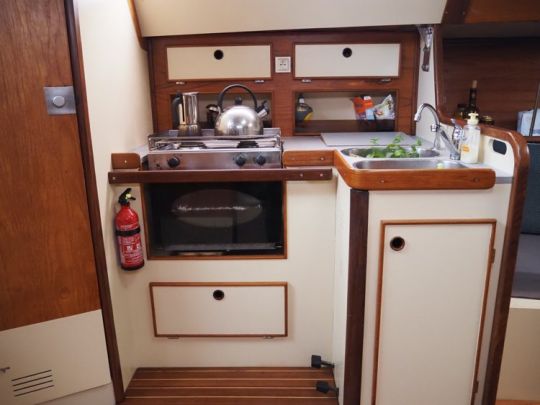

... la nouvelle cuisine en place
...the new kitchen in place

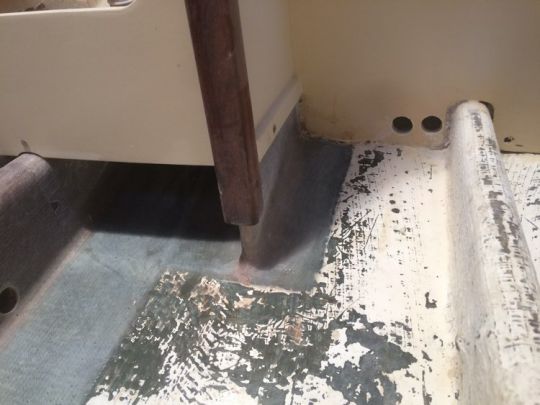

La nouvelle stratification des pieds de meubles
The new lamination of furniture legs

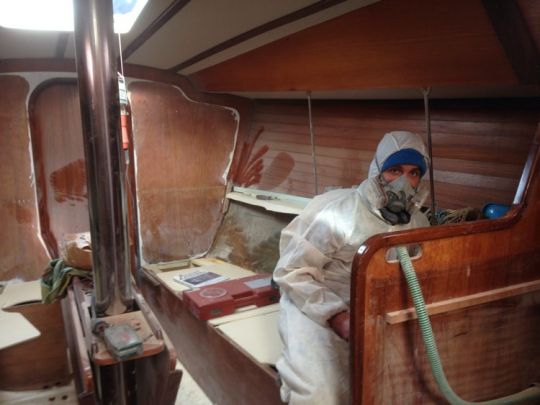

Pnoçage des toutes les cloisons restées en place
Sanding of all remaining partitions

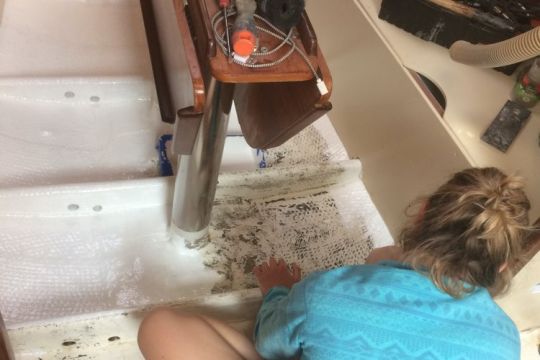

Peinture des fonds
Painting the backgrounds
L'ancien aménagement des toilettes

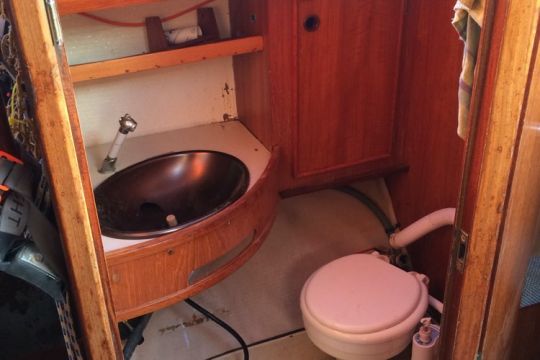

The old toilet layout...

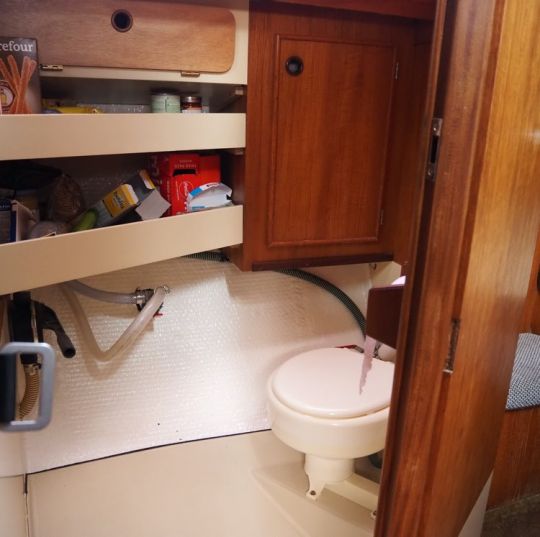

L'abandon de l'évier au profit des rangements dans les toilettes
Abandoning the sink in favour of toilet storage space

The kitchen and chart table were completely dismantled and will be completely rebuilt. It will also be an opportunity to redo all the boat's electrical wiring. The navigation electronics will also be replaced. Pierre and Lucie also had to take back various watertightness features (stanchion base, portholes...).

An almost new saffron

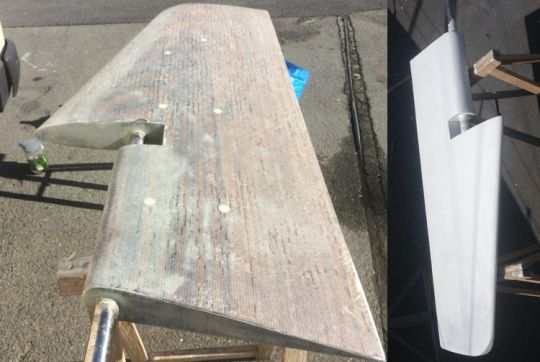

Le safran avec sa couche de stratification et la peinture
The rudder with its layer of lamination and paint

Finally, the confinement of spring 2020 gave time to completely redo the rudder: the wooden core was exposed and the shovel was completely laminated for a perfect watertightness.

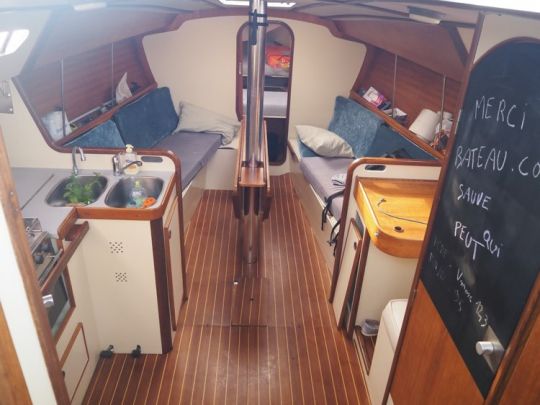

Le carré avant l'arrivée des nouveaux coussins
The saloon before the arrival of the new cushions

Ready for departure

Baptisé !
Baptized!

Released in June 2020, Sauve Qui Peut (from the name of the association) is ready to go again. The sanitary crisis has delayed a little the big departure which will finally take place in spring 2021. This still leaves time to tweak a few details during the winter. If the big cleaning (and especially the paint) masks the original smell of diesel, Pierre and Lucie had to completely change all the foams of the cushions of the saloon. However, especially when sitting at the chart table, some hydrocarbon smells still persist..
