Seatronic likes to simplify electricity on boats. This company defines and meets the boaters' specifications. To give them the desired autonomy in energy, but also to embark reliable devices.
In this context the battery manager is an essential accessory. Basically it indicates the state of charge of a battery. 100% when it is full, 80% if it is empty..

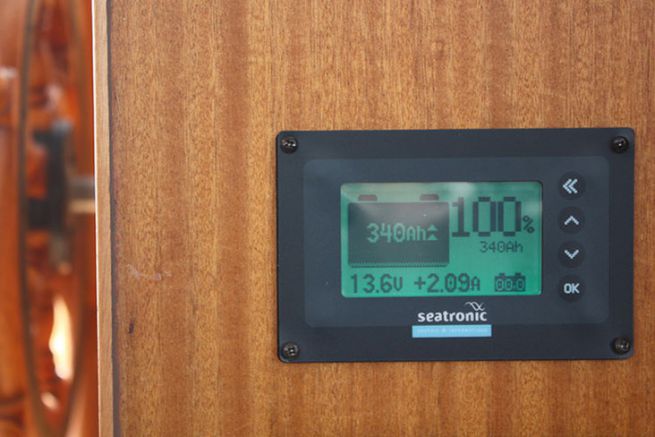

Seatronic launches a battery manager for its customers that combines all useful information on a single screen. On the left is the gauge (like a tank gauge) that shows how much is left in the battery. On the right the same information as a percentage and just below the total capacity of the park.
The bottom line shows the battery voltage, the state of charge (or discharge if negative) and finally the voltage of the motor battery (here at 00.0 V).
It's very simple and intuitive to understand. The user only needs to enter the menus to set high voltage, low voltage and residual capacity alarms for the service park. An alarm activates the display and a beep sound.
This product is compatible with 12V, 24V and 48V installations. It is also available in a double version for monitoring two servitude parks.
Characteristics
- Power supply: 9 to 70 Volts
- Standby consumption (no activity / no backlight) : 4mA
- Power consumption (consumption greater than 0.1A / backlit display) : 10 mA
- Accuracy of current measurement: 1%
- Weight : 200 g
- External dimensions: 115 x 75 mm
- 2 thickness: 20 mm
- Screen dimensions: 65 x 40 mm
- Price: 245 € TTC (delivered with the shunt for a battery park with a capacity between 0 and 999 A)
